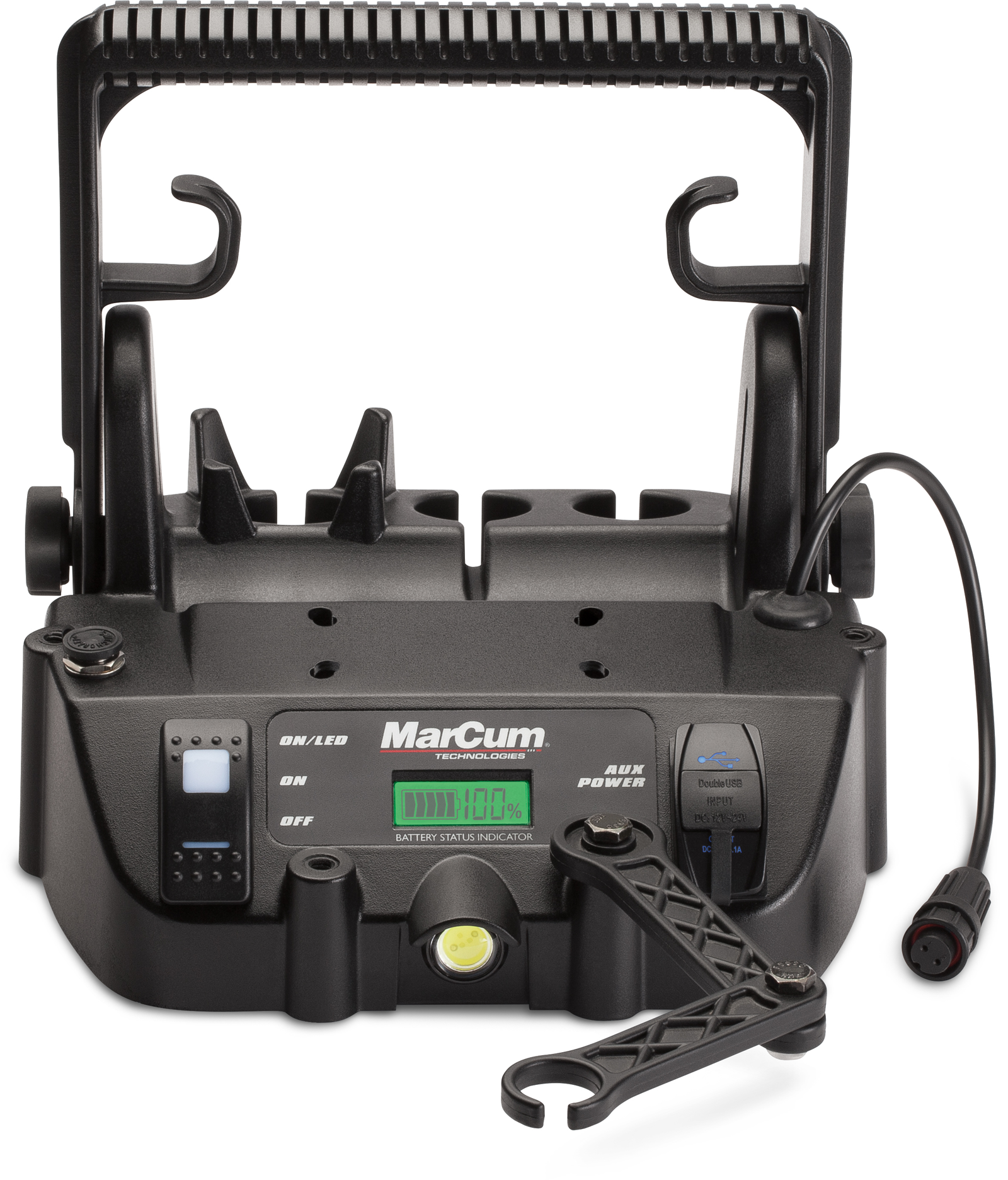

Marcum Lithium Shuttle

Add the long-life power of Lithium ION to your MarCum® sonar units. Compact, lightweight and long-lasting, the Lithium Shuttle, powered by a 12-volt 12-amp hour Lithium ION polymer battery, can extend your unit?s continuous run time up to 36 hours. Designed for the new MarCum® M-Series and the LX-6s & LX-7 sonar systems.

PRODUCT INFORMATION
• MODEL NO.: MLS Lithium Shuttle
• ESTIMATED RUNTIME:* Up to 40 Hours Depending on Conditions
• SIZE: 10-7/8″ x 10-1/2″ x 10-5/8″
• WEIGHT: 4 lbs. 5oz.
• CAPACITY: 12-amp hour
• VOLTAGE: 12.8 Vd.c.
• TERMINALS: MarCum Proprietary Power Plug
• PEAK DISCHARGE: 10-amps
• MAX CHARGE CURRENT: 10-amps
• BMS PROTECTION: Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.
• OPERATING TEMPERATURE: -29°C to +49°C
• CHARGING TEMPERATURE: 0°C to +45°C (Do not charge a frozen battery)

LITHIUM SHUTTLE FEATURES:
• Compact, Lightweight, Long-Lasting
• Up to 40 Hour Continuous Run Time (Battery life varies by use, settings, configuration, and many other factors)
• Lithium ION Polymer Battery
• Recharge Fast with the included 3-amp Hour Charger
• Battery Status Indicator
• LED Lighting Positioned to Illuminate Hole and Charge Glow Lures
• Dual USB Power Ports
• Integrated Cable Storage and Grips
• Dual Rod Holders
• Two 1/4 - 20 Ports for Additional Accessories
• Inverted Transducer Rest Eliminates Freeze Up
• Dual Transducer Support Arm Mounts (One transducer support arm included)
• Articulating Handle with Locking Spokes Adjusts to Fit Most Ice Sonar Systems
• Easy Assembly

IN THE BOX
• BATTERY: Lithium Shuttle with Built-in Rechargeable 12-Volt 12-amp
• CHARGER: 3-Stage Automatic Lithium Charger
• WARRANTY: One Year System Warranty
