KFI 4500lbs KFI UTV Winch (WIDE)

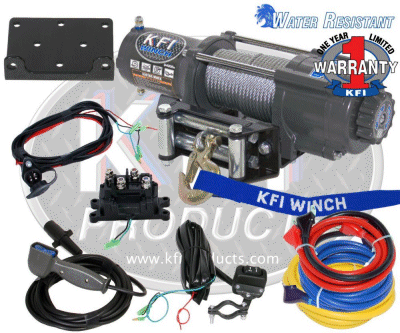

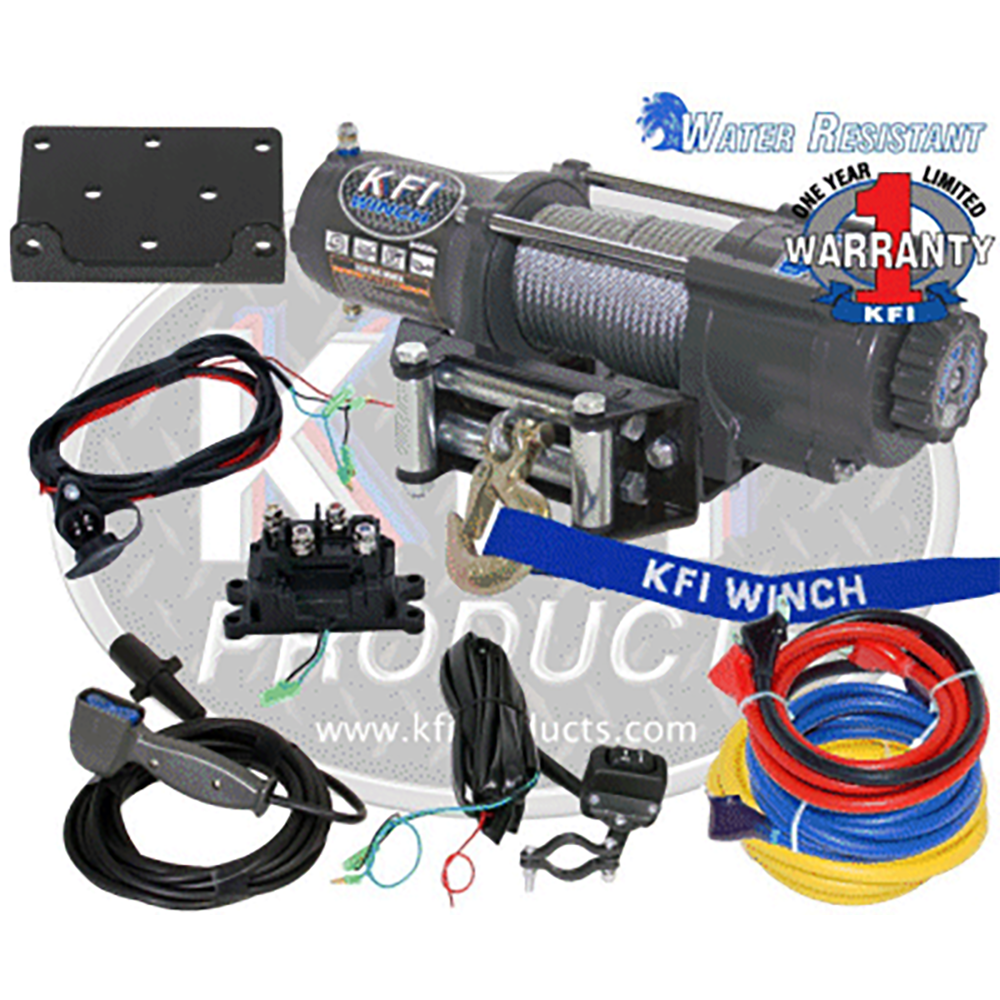

its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 4500lb UTV Series winch features quality cast aluminum and durable steel components, Water Resistant seals to keep the elements out, a wide 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI U4500w Winch comes with everything you need other than a UTV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific UTV winch mount.

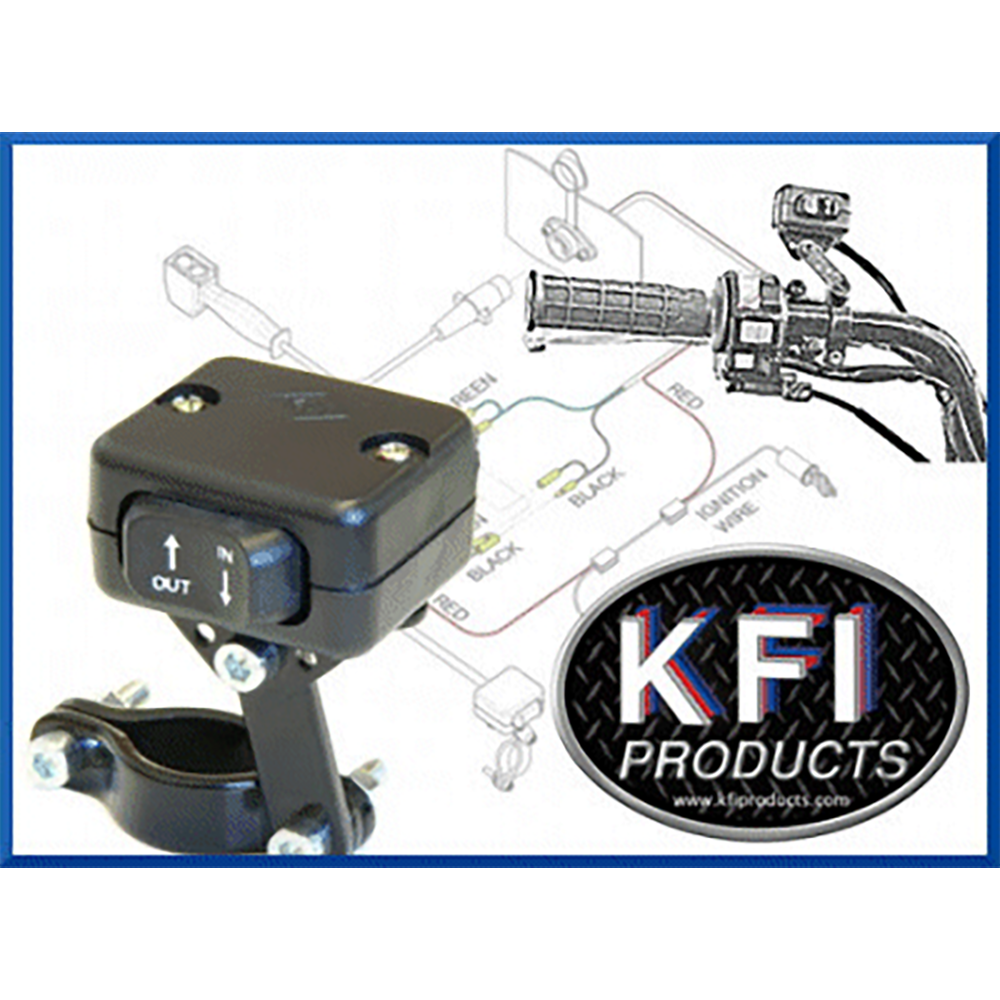

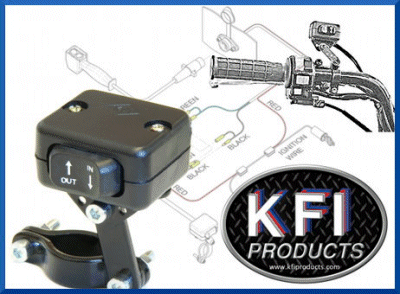

Take control of your winch with the included Mini-Rocker Switch that comes with an adjustable bracket to mount it to your ATV's handle bars and a dash mounted bracket for the UTV's and SxS'sand allows you to control your winch with the touch of your finger without ever letting go of your handle bars or steering wheel.

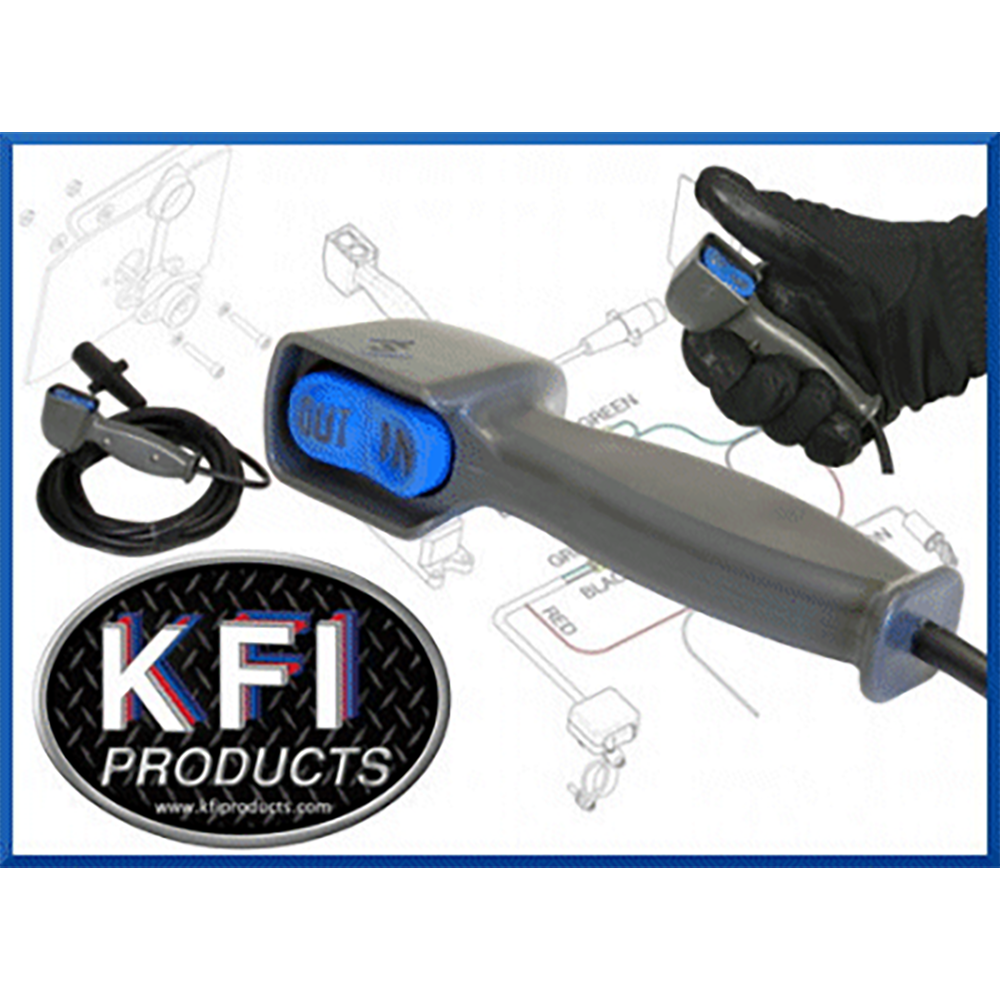

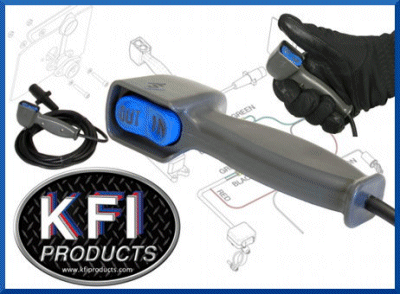

Also included is a Handheld 14' Corded Remote for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.

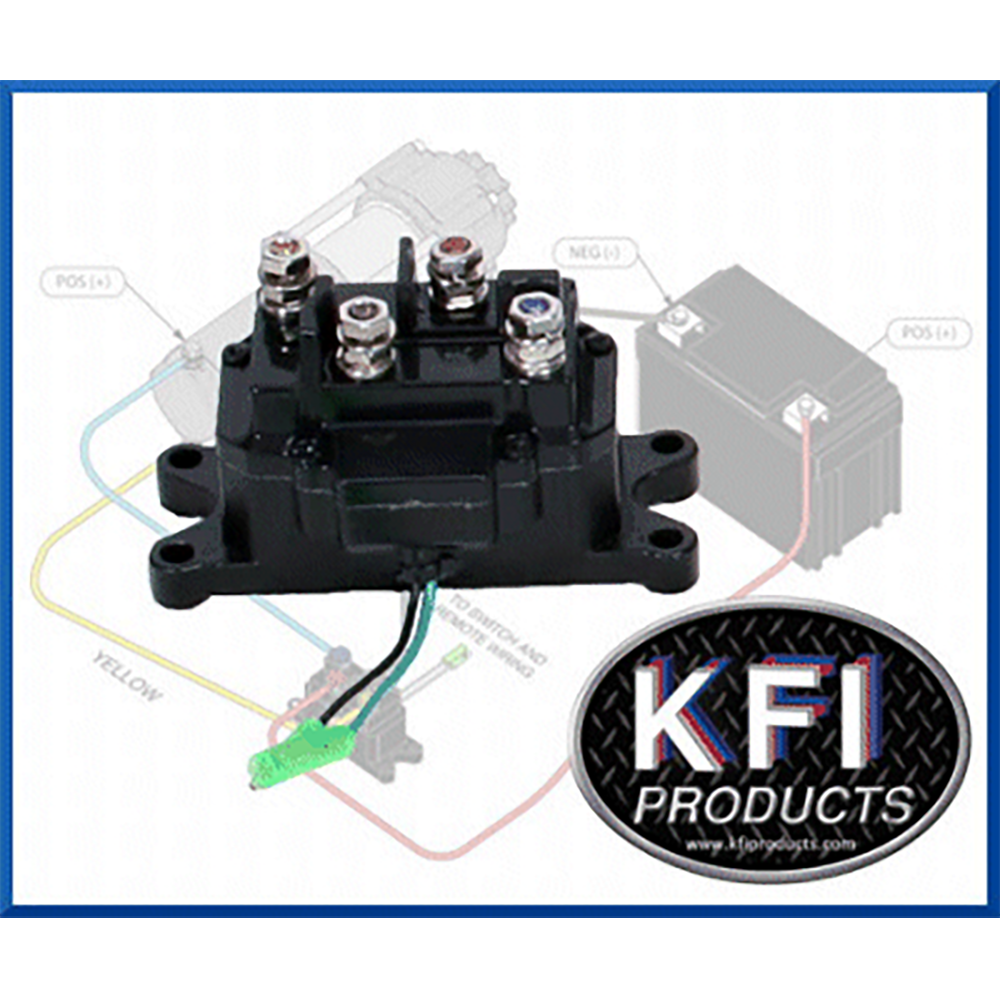

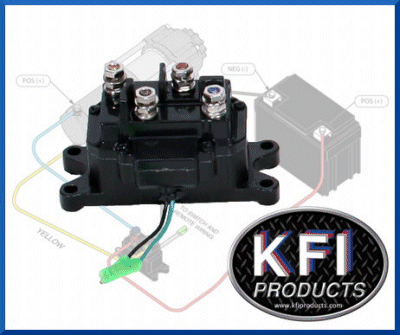

The included Heavy Duty Electric Contactor protects your UTV's electrical system and switches the power distribution of your winch that is controlled from your switches.

Specifications:

Model: U4500w UTV Series (WIDE)

Rated Line Pull: 4500 lbs.

Motor: 12V DC, 1.7 hp Permanent Magnet

Gear Ratio: 166:1

Gear/Transmission: All-metal Planetary Gear Drive

Brake: Dynamic and Mechanical

Clutch (free spooling): All Metal Cam Activated Freespool

Drum Size: 2" (D) x 4.92" (L)

Cable: 15/64" (D) x 52' (L)

Fairlead: Multi-directional Roller

Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch with optional dash mount bracket and a Heavy Duty Corded Remote Switch

Winch Dimensions: 16.22" L x 4.55" D x 5" H

Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)

Mounting Bolt Pattern: 3.00" x 6.60" (4-Hole)

Recommended Battery : 12 Amp/hour minimum

Warranty: Limited 1 Year

Winch Weight: 37 lbs. (complete kit)
