KFI 2000lbs KFI Sport ATV Winch Kit

Winch Details:

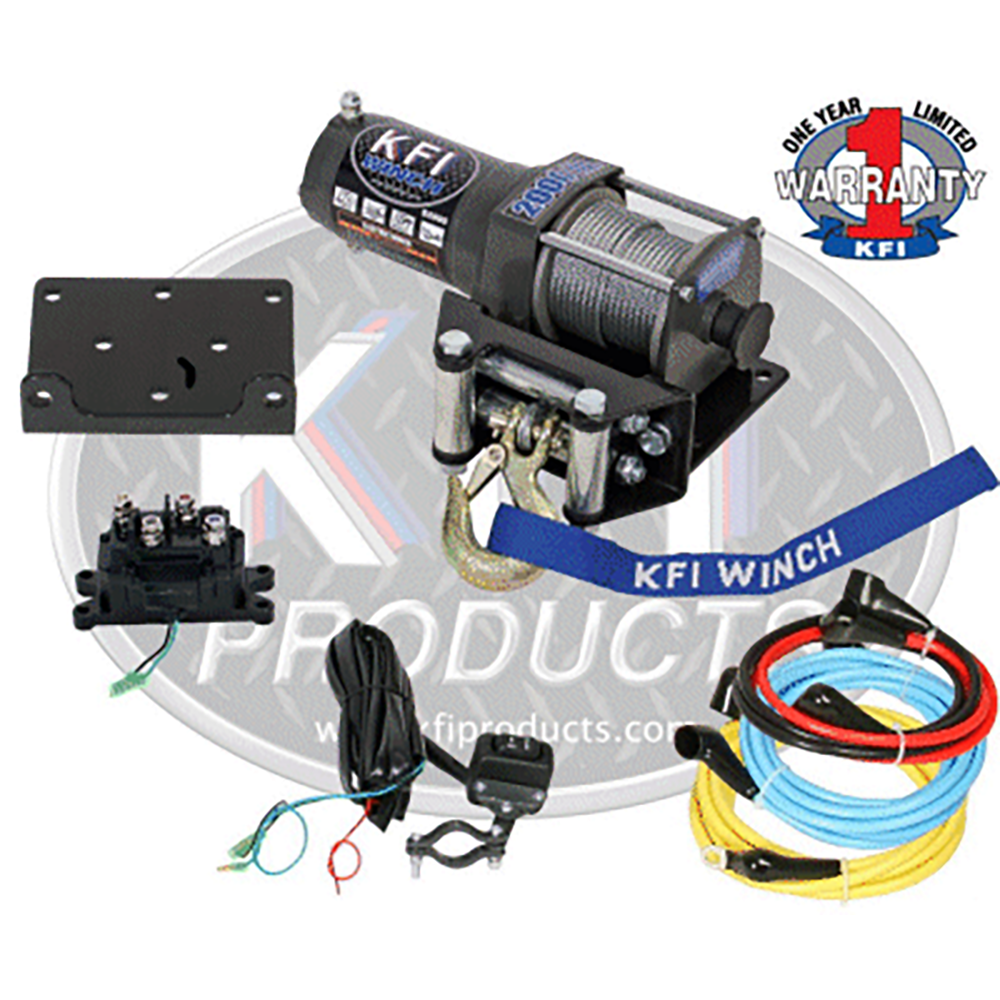

Whether its on a winding trail or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This compact 2000lb Sport Series winch features quality cast aluminum and durable steel components, a compact 2-hole mounting design and a convenient pull clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI S2000 Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

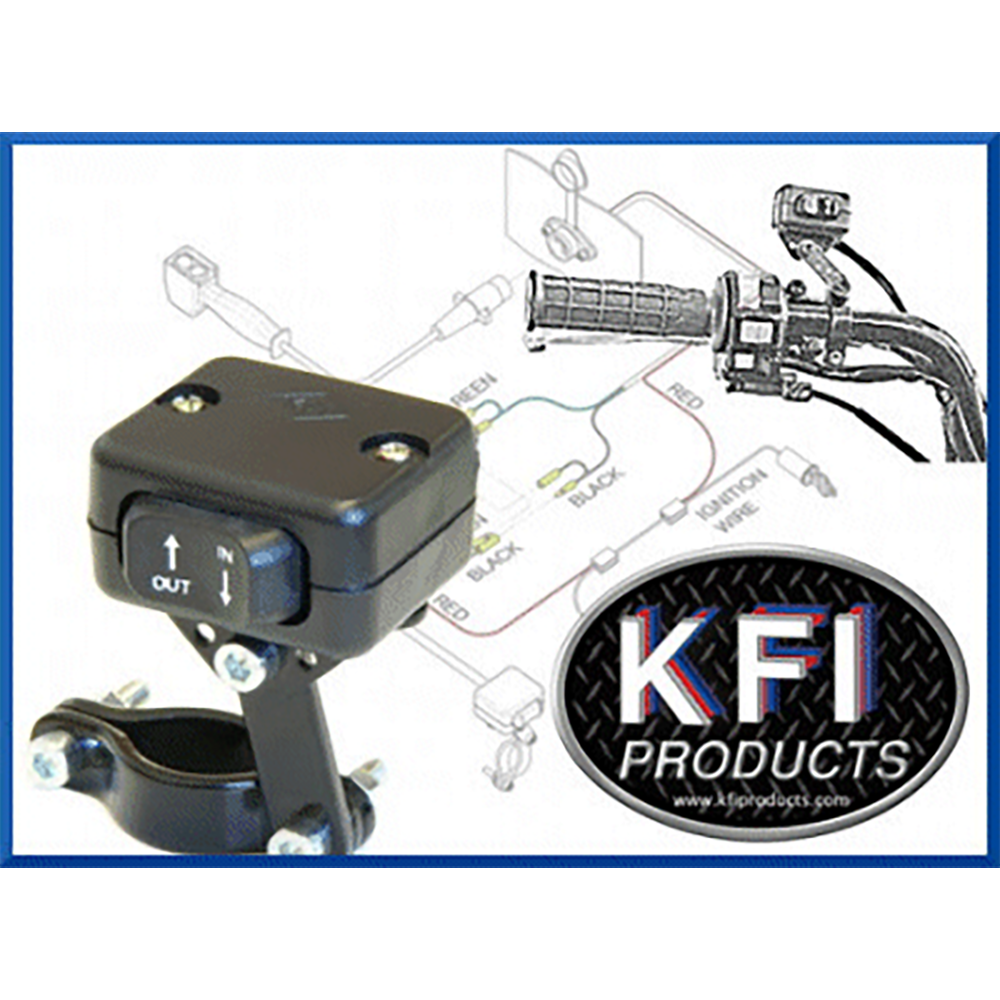

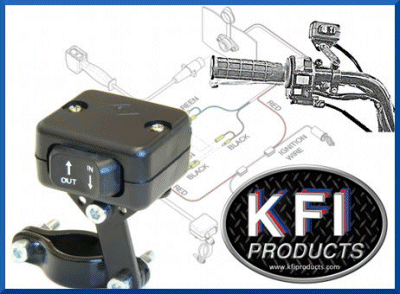

Take control of your winch with the included Mini-Rocker Switch that comes with an adjustable bracket to mount it to your ATV's handle bars and allows you to control your winch with the touch of your finger without ever letting go of your handle bars.

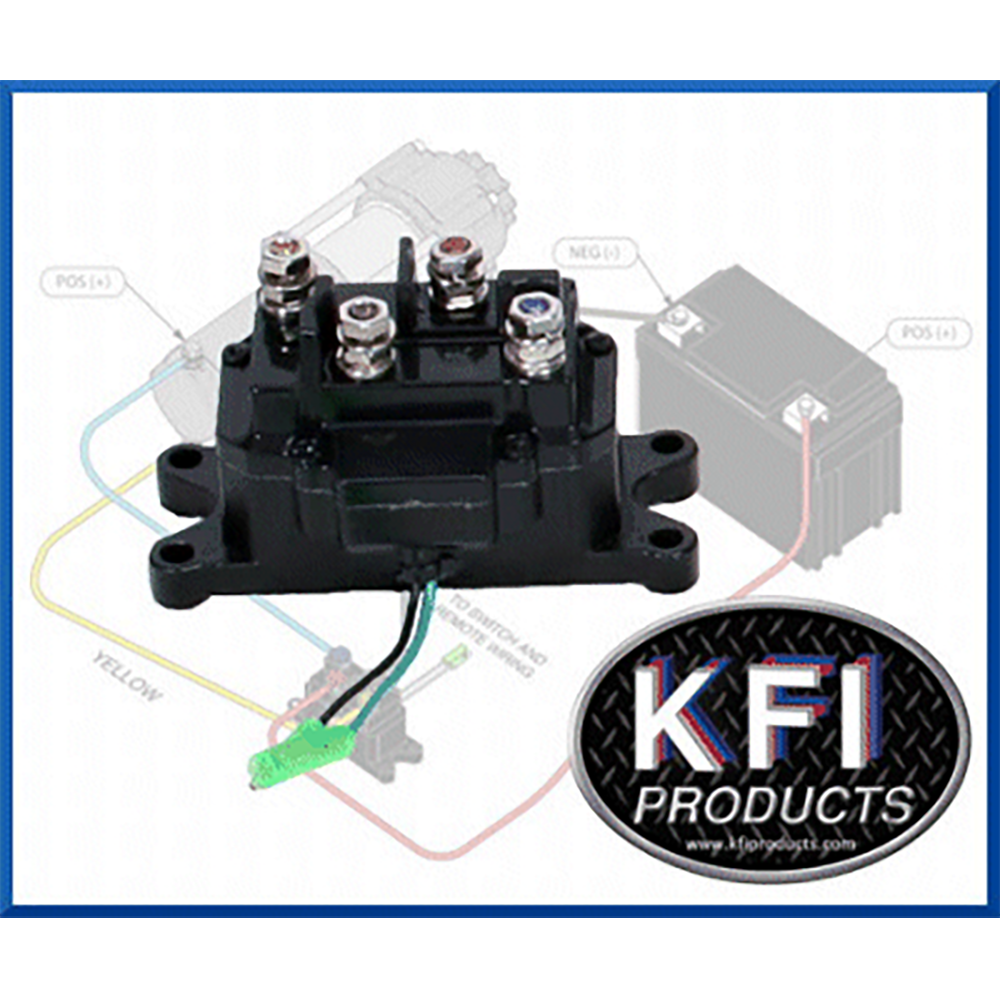

The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.

Specifications:

Model: S2000 Sport Series

Rated Line Pull: 2000 lbs.

Motor: 12V DC, 0.7 hp Permanent Magnet

Gear Ratio: 153:1

Gear/Transmission: All-metal Differential Planetary Gear Drive

Brake: Dynamic

Clutch (free spooling): Pull Knob Free spool

Drum Size: 1.24" (D) x 2.88" (L)

Cable: 5/32" (D) x 49' (L)

Fairlead: Multi-directional Roller

Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch

Winch Dimensions: 11.42" L x 4.0" D x 4.33" H

Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)

Mounting Bolt Pattern: 3.10" (2-Hole)

Recommended Battery : 12 Amp/hour minimum

Warranty: Limited 1 Year

Winch Weight: 22.2 lbs. (complete kit)
