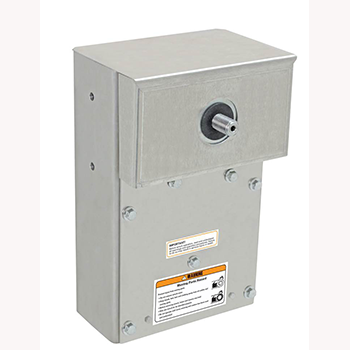

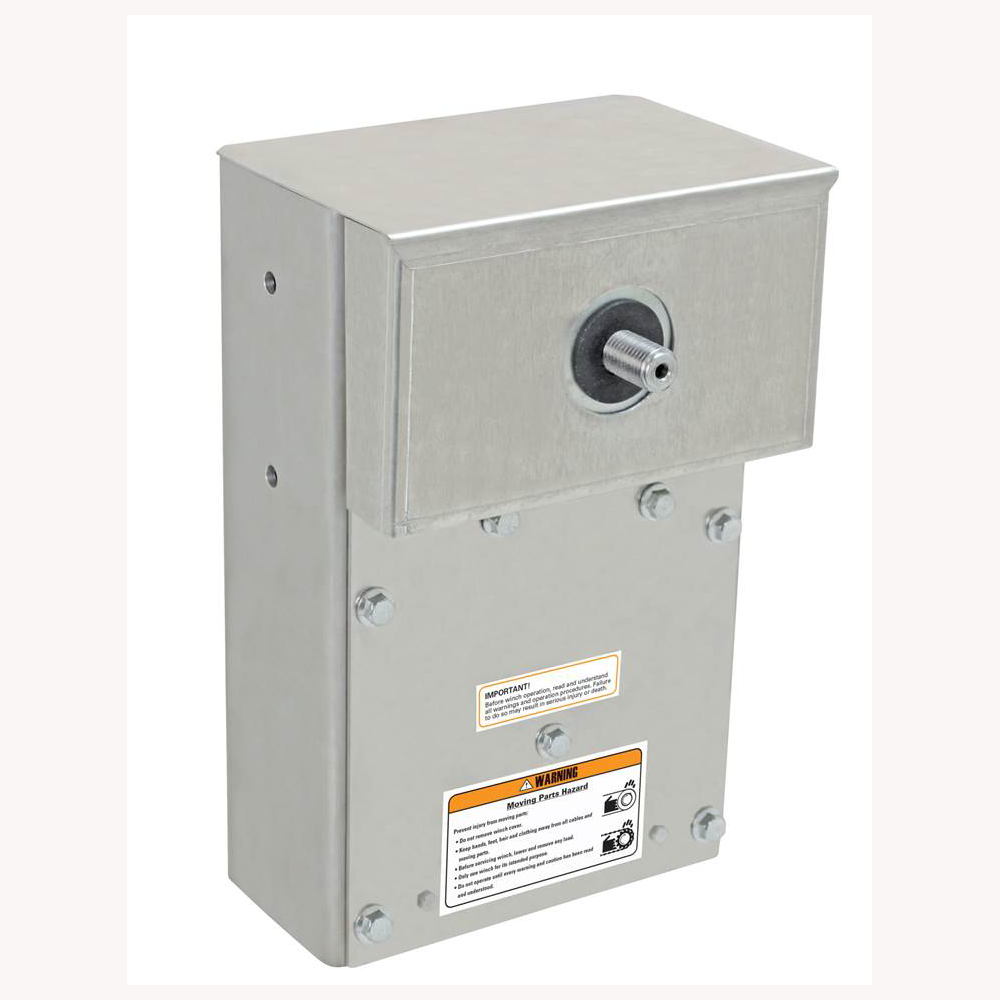

EXTREME MAX 3006.6629 5000 LB. HEAVY-DUTY WINCH BOX (LORENZ-STYLE REPLACEMENT) (2025)

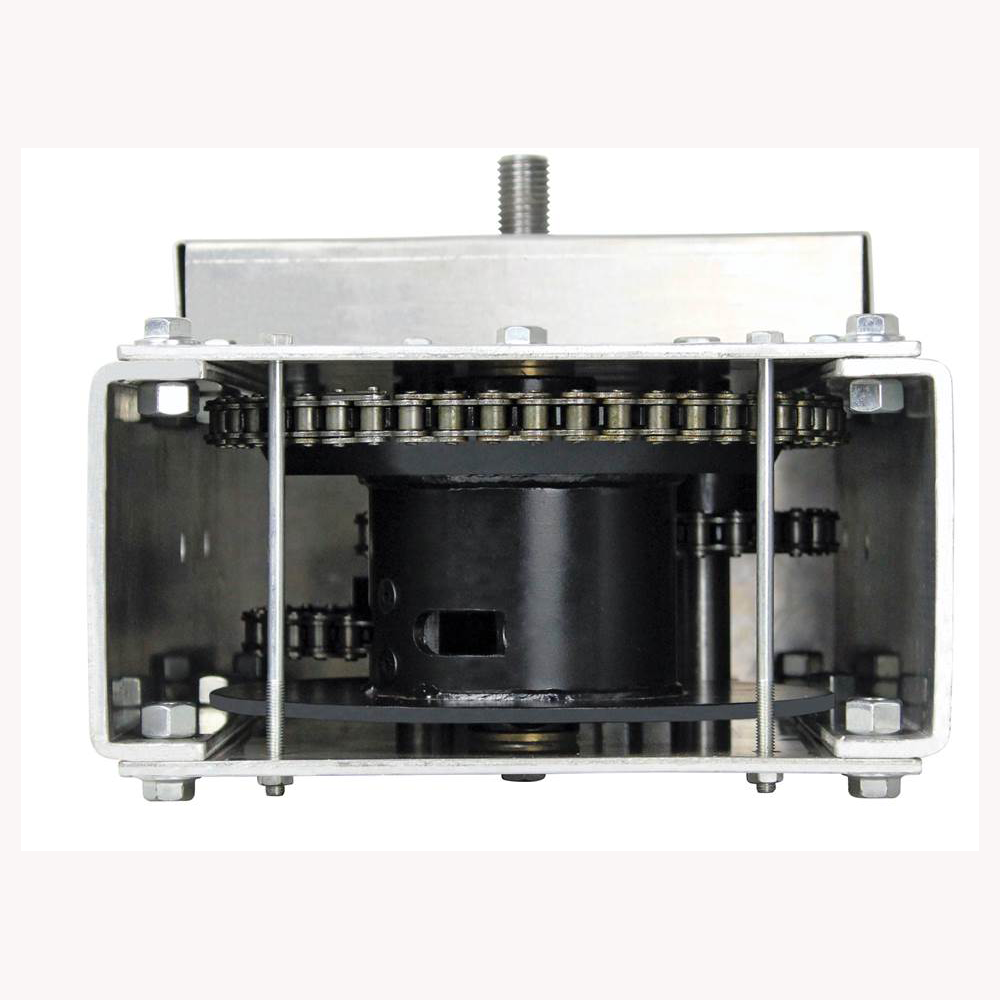

Extreme Max Winch Boxes are sure to satisfy. All models come equipped with the cable-keeper saddle for an easy cable mounting; no more messing around trying to bend cables through or around fastener plates, simply side the cable in and lock it on. The heavy-duty casing encloses some of the best-in-class components, from Oilite bushings to high-tempered chains and sprockets; these winches are built to last. Dimensions (Width x Depth x Height): 13 in. x 6 in. x 18 in. Maximum Cable Weight: 2,600 lbs. Ratio: 24.1:1 Cable Sizes: 5/16 in. - 3/8 in. Drum Size: 4 in. Cable Draw per Turn: 0.56 in. Mounting Hole Spacing: 4 in. on center.

Features
• Superior cable-keeper saddle for easy hookup
• Double-friction disc design for durability
• High-tempered chains and sprockets
• Heavy-duty aluminum casing
• Oversized flange bolts
• Oilite bronze bushings
• Standard 7/8"-9 thread for crank wheel
• 2,600 lb. Max Cable Weight
